New 2023 Thor Motor Coach Axis 25.7

Motor Home Class A

Stock #20233

4784 Boulder Hwy.

1 Slide, Rear bathroom, Drop down Bunk !!

1 of 21

+21

Sleeps 6
1 Slides
Bunk Over Cab

27ft Long
LIQUID MERCURY III

See All Specs

Specifications

Sleeps	6	Slides	1
Length	26 ft 9 in	Ext Width	7 ft 10 in
Ext Height	11 ft	Int Height	6 ft 10 in
Interior Color	LIQUID MERCURY III	Exterior Color	RALLY RED
Hitch Weight	8000 lbs	GVWR	14500 lbs
Fresh Water Capacity	40 gals	Grey Water Capacity	41 gals
Black Water Capacity	30 gals	Tire Size	16"
Furnace BTU	35000 btu	Fuel Type	Gasoline
Engine	7.3L V8	Chassis	Ford E-Series
Horsepower	350 hp	Fuel Capacity	55 gals
Number Of Bunks	1	Available Beds	Queen
Torque	468 ft-lb	Refrigerator Type	Double Door
Convection Cooking	Yes	Cooktop Burners	2
Shower Size	30" x 26"	Number of Awnings	1
LP Tank Capacity	40 lbs	Water Heater Capacity	6 gal
Water Heater Type	DSI Gas/Electric	Basement Storage	38.5 cu. ft.
TV Info	LR 32" TV	Awning Info	18' Power w/Integrated LED Lighting
Gross Combined Weight	22000 lbs	Shower Type	Standard
Electrical Service	30 amp	VIN	1FC4E4KN7PDD34239

Description

Thor Motor Coach Axis Class A gas motorhome 25.7 highlights:

Sofa Slide Out
Drop-Down Overhead Bunk
Rear Corner Bath
Kitchen Pantry
Fold-Up Queen Bed

This coach includes plenty of storage space so don't worry about leaving anything behind! The mega storage rear door access allows you to easily pack items under the side hinged fold-up queen bed in the back, plus there are two closets, a kitchen pantry and overhead compartments! After you've unpacked and worked up an appetite, prepare lunch with the two burner gas cooktop or in the convection microwave. You'll also find a double door refrigerator for perishables, plus a single bowl sink and a pull-down sprayer and a waste basket for easy clean up. The 67" sofa slide includes a removable pedestal table in direct view of the 32" TV, and there is a coffee table up front between the swivel captain's chairs for even more seating space. Don't let this coach slip away!

With any Axis RUV Class A gas motorhome by Thor Motor Coach you will enjoy added technology features to make each trip enjoyable, like the RapidCamp+ multiplex lighting and systems control and the Winegard ConnecT 2.0 Wi-Fi/4G/TV antenna. Each model features heated and remote exterior mirrors with integrated side view cameras, reclining and swivel leatherette captain's chairs, and a dash workstation with 110-volt and 12-volt outlets to get some work done if needed. Relaxing after a long day of traveling will be easy with the leatherette furniture, the Euro-style cabinet doors, and 82" interior ceiling height. The HD-MAX exterior with graphics package and black frameless windows provide a sleek look you are sure to love, and don't overlook the power awning with integrated LED lighting and lighted rotocast storage compartments for all your gear.

Options:

100W SOLAR CHARGING SYSTEM W/POWER CONTROLLER
12V ATTIC FAN IN BEDROOM
12V OUTLET IN B/R FOR CPAP MACHINE
2BURNER COOKTOP W/GLASS COVER & ELECTRIC START
32" TV IN LIVING AREA
4000I FLEX POWER GAS GENERATOR
6GAL GAS\ELECTRIC WATER HEATER
AUTO GENERATOR START
BEDROOM USB CHARGING PORT
BLACK TANK FLUSH SYSTEM
CONVECTION-MICROWAVE OVEN
DOUBLE DOOR REFER
ELECTRIC STABILIZING SYSTEM
EXTERIOR LP CONNECTION
FILL FUEL TANK
FILL LPG
FLIP-UP COUNTERTOP EXTENSION
FRAMELESS WINDOWS
FRONT ELECTRIC DROP DOWN OVER HEAD BUNK
HEATED REMOTE EXT MIRRORS W/SIDE CAMERAS
HOLDING TANKS W/HEAT PADS
KITCHEN COUNTERTOP LED ACCENT LIGHTING
LEATHERETTE JACKKNIFE SOFA & PEDESTAL TABLE
LIFT-UP UPHOLSTERED QUEEN CORNER BED W/REAR DOOR ACCESS
OUTSIDE SHOWER
PDI
POWER DRIVERS SEAT
RAPID CAMP MULTIPLEX WIRING CONTROL SYSTEM
RECLINING SWIVEL CAPTAINS CHAIRS
SCHOOLING
SECOND AUXILIARY BATTERY
SHOWER MISER HOT WATER RECYCLING SYSTEM
SILVER OAK CABINET UPGRADE
SINGLE HO ROOF A/C (FRONT)
SIRIUSXM TUNER AND ANTENNA
STAINLESS STEEL WHEEL LINERS
STANDARD EQUIPMENT:
STEERING WHEEL AUDIO & CAMERA CONTROL
STOW-AWAY COFFEE TABLE
TOUCHSCREEN DASH RADIO W/APPLE CARPLAY & ANDROID AUTO
TRAILER PAC VOUCHER
VALVE STEM EXTENDERS ON REAR WHEELS
WINEGARD CONNECT WIFI/4G/TV ANTENNA
WIRELESS PHONE CHARGER W/USB PLUG

Features

Standard Features (2023)

Construction and Exterior

Ford E-Series Chassis
8,000-lb. Trailer Hitch with 7-pin Round Connector
Electric Stabilizing System (Optional)
Welded Tubular Steel Floor
Welded Tubular Aluminum Roof and Sidewall Cage Construction
Vacu-Bond Laminated Roof, Walls and Floors with Block Foam Insulation
One-Piece Fiberglass Front Cap
Premium One-piece Roof
HD-MAX® Exterior with Graphics Package
Lighted Rotocast Storage Compartments
Flush Mount Radius Compartment Doors
Power Patio Awning with Integrated LED Lighting
Slide-out Room Topper Awning(s)
Roof Ladder
Exterior Grab Handle
Entry Door with Deadbolt Lock
Lift Up Bed Rear MEGA-Storage Area includes Floor Tie-Downs and Over-Size Rear Access Door (Model Specific)
Black Frameless Windows

Automotive and Cockpit

10 in. Touchscreen Dash Radio with Bluetooth®, Android Auto®, Apple CarPlay™ and Sirius/XM® Radio
Steering Wheel Audio and Camera Control
Cruise Control
Tilt Steering Wheel
Heated/Remote Exterior Mirrors with Integrated Side View Cameras
Living area Speaker tied to Dash Stereo
Reclining/Swivel Leatherette Captain's Chairs
Power Drivers Chair (Optional)
Stow-Away Coffee Table
Three-Point Seat Belts for Driver & Passenger
Map Light
Power Privacy Shade on Windshield
Drink Holders
Dash Workstation with 110-volt and 12-volt Outlets
Fog Lights
16 in. Tires with Stainless Steel Wheel Liners
Valve Stem Extenders on Rear Wheels
Emergency Engine Start Switch
Power Drop Down Hide-Away Overhead Bunk with Cotton Cloud™ Mattress and Bunk Ladder

Interior

Residential Vinyl Flooring
82 in. Interior Ceiling Height
Rubber Tread Entry Steps with Lighted Step Well
Metal Entry Grab Handle
Smoke, LPG and Carbon Monoxide Detectors
Fire Extinguisher
Ceiling Ducted Air Conditioning System
Vinyl Ceiling
Euro-Style Cabinet Doors with Soft Close Hidden Hinges and Nickel Finish Hardware
Home Collection™ Interior Decor and Cabinet Package (Optional)
Silver Oak Wood
Leatherette Tri-Fold Sofa and Removable Pedestal Table with Cupholders (Model Specific)
Leatherette Manual Murphy Bed Sofa and Removable Pedestal Table with Cupholders (Model Specific)
Leatherette Manual Murphy Bed Sofa (Model Specific)
Leatherette Jackknife Sofa and Removable Pedestal Table with Cup Holders (Model Specific)
Leatherette Dream Dinette® Booth with Cupholders (Model Specific)
Leatherette Dinette Booth with Cupholders (Model Specific)
Wireless Phone Charger with USB plug
Passenger Seat Belts in select areas
LED Lighting
Window Privacy Roller Shades
Full Extension Ball-Bearing Metal Drawer Guides

Kitchen

Double Door Refrigerator
Two Burner Gas Cooktop, Glass Cover, with Electric Start
Protective Cover and Task Lighting Above Cooktop
Convection Microwave Oven
Pressed Laminate Countertop with Sink Cover
Flip-Up Countertop Extension (Model Specific)
Large Under mount Stainless Steel Single Bowl Sink with Cover and Single Handle Kitchen Faucet with Pull-Down Sprayer
Waste Basket
12-volt Power Bath Vent with Wall Switch
Kitchen Countertop Accent LED Lighting

Bedroom and Bathroom

Two (2) Twin Sofa Beds with Upholstered Covers and King Conversion (Model Specific)
Lift-Up Upholstered Queen Corner Bed with Rear Door Access to Storage with Tie downs (Model Specific)
Bedspread & Pillow Shams
Headboard (Model Specific)
Bedroom USB Power Charging Center for Electronics
Bedroom 12V Outlet for CPAP Machine
Large 'His" and 'Her' Wardrobes (Model Specific)
Foot Flush Porcelain Toilet
12-volt Power Bath Vent with Wall Switch in Bathroom (Model Specific)
12-volt Attic fan with cover in bathroom (Model Specific)
12-volt Attic fan with cover in bedroom (Model Specific)
12-volt Attic fan with cover above bed (Model Specific)
Robe Hooks inside Bath
Skylight in Shower
Shower with Deluxe Curtain and Curved Rod
Stainless Steel Bathroom Sink

Entertainment

32 in. TV in Living Area
32 in. TV in Bedroom (Model Specific)
Digital TV Antenna and Booster
Cable TV Ready
Satellite Mounting Backer in Roof

Electrical and Plumbing

RapidCamp+™ Multiplex Lighting and Systems Control
Winegard® ConnecT 2.0 WiFi/4G/TV Antenna
30-amp Detachable Shoreline Power Cord
4.0 kW Gas Generator
Automatic Transfer Switch w/Power Protection
Automatic Generator Start (AGS)
High Output Roof Air Conditioner
Battery Disconnect Switch
Second Auxiliary House Battery
100-watt Solar Panel with Controller (Optional)
6-gallon DSI Gas/Electric Water Heater
Outside Shower
360 Siphon RV Holding Tank Vent Cap
1 in. Fresh Water Tank Drain
Exterior LP Connection
Holding Tanks with Heat Pads (Optional)
Black Tank Flush
Showermiser Hot Water Recycling System

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Parts Department
Good day, as a third gen mechanic and business owner who has been in the RV industry for 35 years, I say good job to your parts dept., especially Mike P! For years now he has been there for RV parts, always on the mark with our special order manufacturer parts. Can't say thank you enough, thank you

Charlie from Hualapai, AZ
Five-star rating
My five-star rating is all thanks to Joe in the Parts Dept. He went the extra mile for me, searching far & wide and ultimately finding a bathtub replacement for me. He was friendly, patient, and got the job done! Other shops gave up pretty quick on the search. So grateful I tried Johnnie Walker RV.

Blue
Johnnie Walker RV has an amazing inventory.
Johnnie Walker RV has an amazing inventory. The whole purchasing experience felt natural and not pushy at all, the way it should be. The service department taught us so much and offered additional assistance if needed. We love our travel trailer, and we will be back for another purchase in the future!

Uriel

We are here to help, call us at
725-238-1617 or Contact Us

We are here to help!

725-238-1617
Contact Us
Get Lowest Price!

Johnnie Walker RV Sales is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @725-242-8773 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

New 2023 Thor Motor Coach Axis 25.7

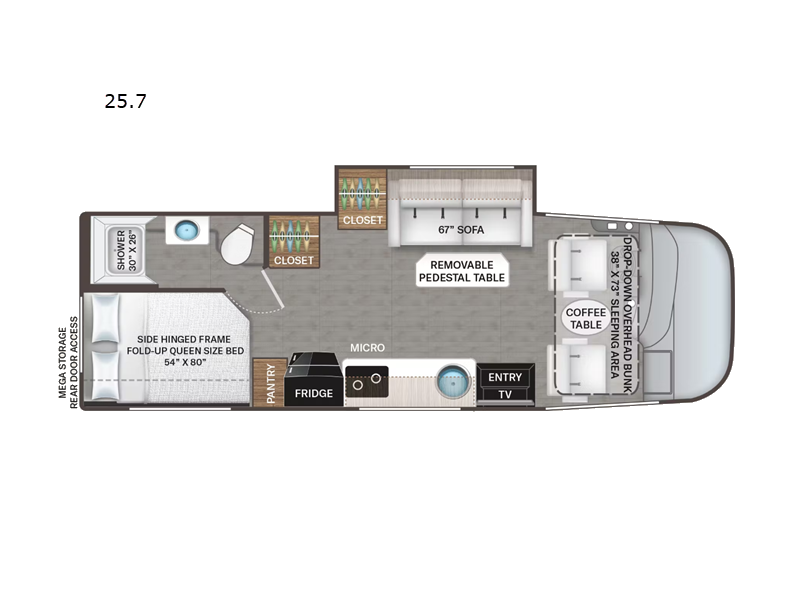

25.7 Floorplan
